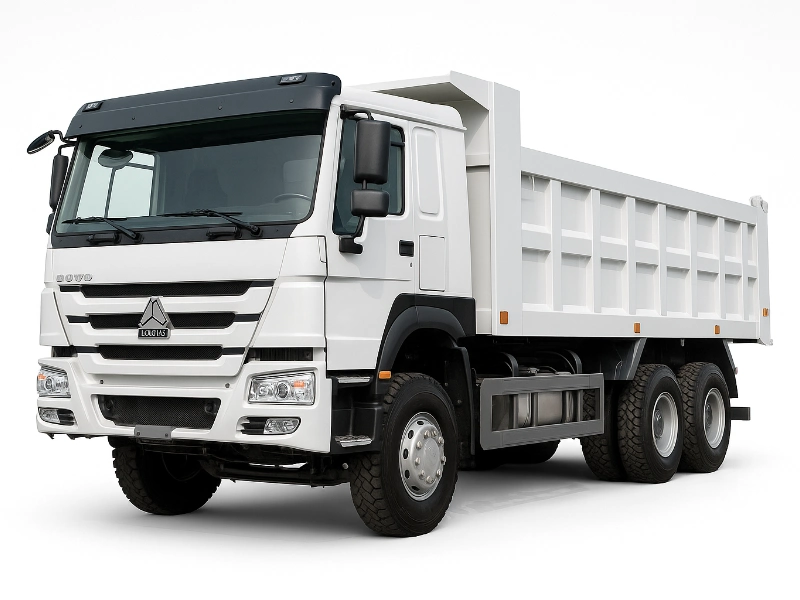

SINOTRUK HOWO MINING DUMP TRUCK

According to clients’ requirements, we can customize different loading capacity and volume.

Download the brochure now to view all product details and technical specifications (PDF, 689.7 KB).

We are always ready to face the most severe working conditions.

Thanks to its robust and durable body, HOWO truck has extraordinary performance in construction, mining and other application scenarios.

In the harsh working environment, HOWO is always ready to meet the severe test.

Overview

Unstoppable Productivity

Handle the toughest hauling jobs with greater speed and reliability in the heavy-duty HOWO Dump Truck, built with advanced engineering to boost efficiency and reduce downtime. Whether you’re working in mining, construction sites, or large-scale material transport, the powerful HOWO dump truck delivers maximum load capacity and durability — driving your operations toward higher profitability.

Parameters

Vehicle type	Tipper
Drive type	6x4
Cab	HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)
Engine	D12.42 , 420HP( Euro II)
Clutch	Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Suspension	Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer
Transmission	HW19710(10 forwards & 2 reverses)
Front axle	HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Rear axle	AC26, 26Tons
Steering System	ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System	Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake
Electrics	Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tyre	12.00R20,315/80R22.5,13R22.5 etc.
Fuel Tank (L)	300L Diesel Tank
Overall Dimension	8700×3300×3670(mm)
Max. Speed (km/h)	50
Max. Gradebility (%)	≥40
The carriage Size	5800×3100×1600(mm),Bottom:16mm, Side:12mm

If you are interested in this Howo Dump Truck welcome to leave your message! We will provide more details, quotations, catalogs, drawings, and videos for you!
